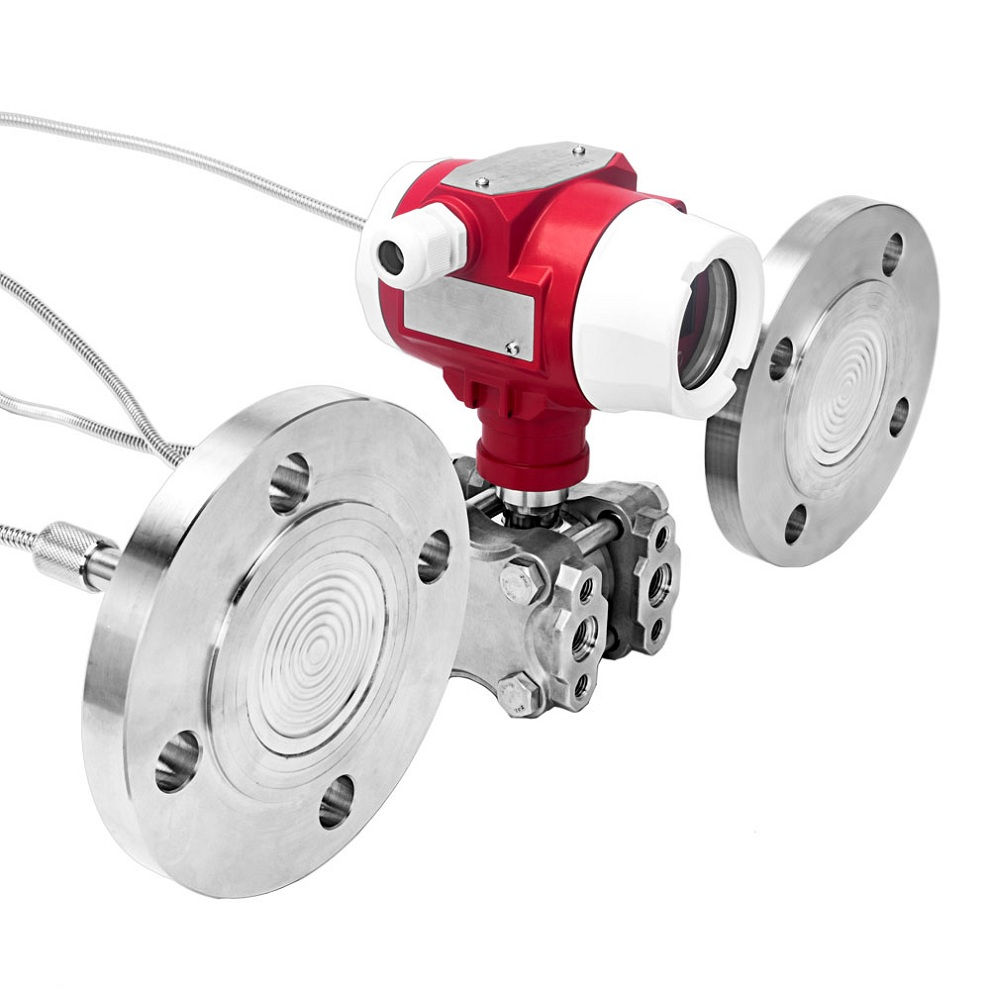

Remote Diaphragm Differential Pressure Transmitter

The sensor locates on the top of the metal body and stay away from the medium interface to realizes mechanical isolation and thermal isolation. Glass sintering sensor wire realizes high strength electrical insulation of metal base and improves the capability of flexibility of electronic circuit and transient voltage resistance protection.

• Originally patented fully-sealed, fully-isolated monosilicon differential pressure sensor.
• Double diaphragm overload protection structure can easily cope with high overload test.
• ASIC and SMT signal transmitting module.
• Friendly button parameters operation function, display measured data quickly.
• Multiple temperature and linearity compensation to improve accuracy.
• Stainless steel welding technology and surface treatment process conform to international hygienic standard.

Features:
• Measuring range: 4kPa-1MPa
• Output signal: 4-20mA, 4~20mA/HART
• Reference accuracy: ±0.2% URL, ±0.5% URL
• Media temperature: -40-120℃
• Measuring medium: pressure, level, differential pressure, density, interface, flow
• Protection class: IP67
• Diaphragm material: SUS316L, Hastelloy C
• Stability: ±0.2% URL/5 years
• Process connection: DN50 PN10, DN80 PN10, DN100 PN10,
Tri-Clamp 1-1/2", Tri-Clamp 2"

Approvals:
CE, EX-proof

Industry application:
• Process control system
• Petroleum industry
•Chemical industry
